This manual introduces the installation and debugging methods of the 802D CNC system, including hardware preparation, tool software installation, system connection, PLC debugging, drive setting and debugging, NC parameter setting, data backup, mass production, special function debugging, etc.

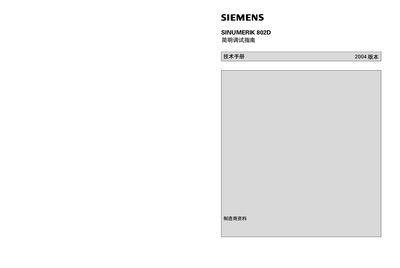

The Siemens SINUMERIK 802D Service Manual provides detailed information on system architecture, PLC functions, NC operation, and data management. It includes quick‑start instructions, hardware specifications, and step‑by‑step procedures for diagnosing and repairing the controller.
The manual also covers maintenance tasks, communication interfaces such as RS‑232 and PROFIBUS, and safety guidelines. It is intended for service technicians and engineers working with the SINUMERIK 802D system. This manual is written in Chinese.
| PROFIBUS support | Yes |
|---|---|
| PCU model | PP72/48 |
The PCU model is PP72/48.
Yes, the manual begins with a Quick Start section for the SINUMERIK 802D.
