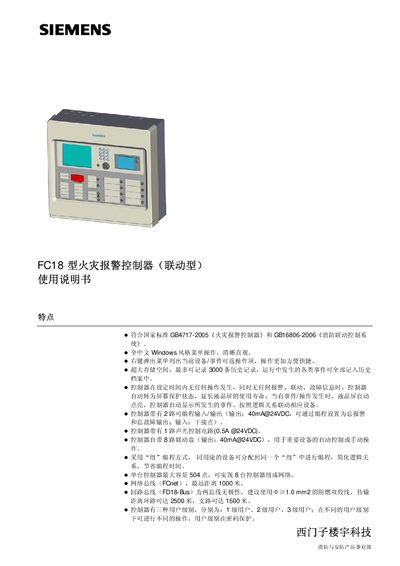

The Siemens FC18 fire alarm controller manual provides features, installation steps, wiring diagrams, and performance specifications.
The FC18 fire alarm controller is a network‑capable device that complies with Chinese standards GB4717‑2005 and GB16806‑2006. It offers a Windows‑style menu, large storage for up to 3000 historical events, programmable I/O, sound‑light alarm circuits, and up to eight controllers can be linked via the FCnet bus.
The manual covers the internal structure, detailed installation procedures, wiring diagrams for power, loop, and fire‑display panels, as well as performance parameters such as power requirements, operating temperature, and environmental ratings. It also lists ordering information for different configuration options. This manual is written in Chinese.
| Maximum historical records | 3000 entries |
|---|---|
| Programmable I/O | 2 channels (40 mA @ 24 VDC) |
| Maximum points per controller | 504 points |
| FCnet network distance | Up to 1000 m |
| Loop bus (FD18‑Bus) distance | Ring up to 2500 m, branch up to 1500 m |
| Power input | 220 VAC, 50 Hz |
| Power capacity | 5 A @ 24 VDC |
| LCD resolution | 320 × 240 pixels |
| Dimensions (W×H×D) | 437 mm × 408 mm × 19 mm |
| Weight (without battery) | 10.35 kg |
| Operating temperature | 0 °C to +40 °C |
| IP rating | IP30 |
It can store up to 3000 historical records.
Up to eight FC18 controllers can be linked in a network.
The controller requires a 220 VAC, 50 Hz input and can draw up to 5 A at 24 VDC.
The FCnet bus can transmit up to 1000 meters.
