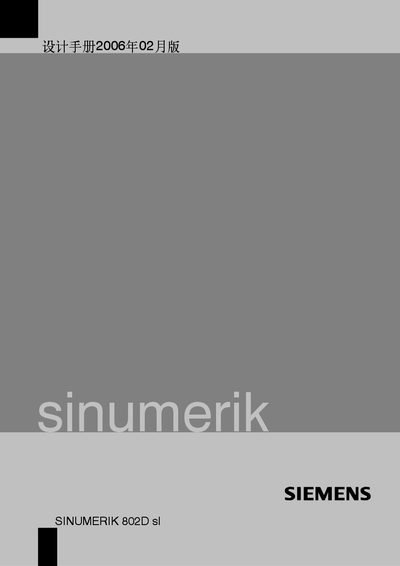

This document is about the design manual of the SINUMERIK 802D sl list of Siemens. It mainly introduces the machine data overview, setting data overview, machine data description, setting data description, interface signal, PLC user interface, SINAMICS parameters, etc.
This design manual is intended for design, programming, and debugging personnel working with the SINUMERIK 802D sl control system. It includes safety information, qualified‑personnel requirements, and the scope of use.
The document is organized into sections covering machine data, setting data, interface signals, PLC user interface, and SINAMICS parameters, with extensive tables of parameters and signal definitions for configuring and maintaining the system. This manual is written in Chinese.
| Software version | SINUMERIK 802Dsl 1 |
|---|---|
| Document number | 6FC5397--5CP10--0RA0 |
| Release date | February 2006 |
