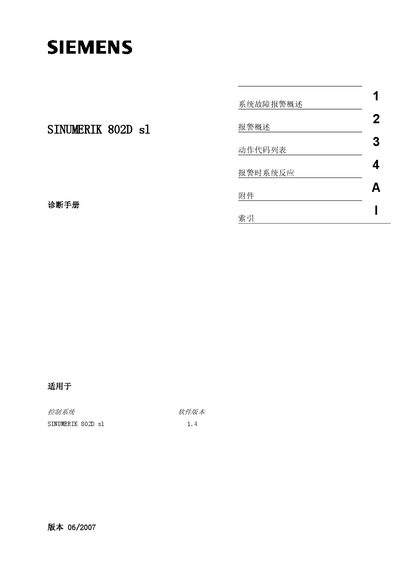

This document is the diagnostic manual for SINUMERIK 802D sl with version 06/2007, applicable to control system software version SINUMERIK 802D sl 1.4. The document provides an overview of system fault alarms, action code lists, and the system's response to alarms. It also includes an index and trademark information.
This manual is intended for designers, debugging personnel, machine‑tool operators, and maintenance staff who need to diagnose and respond to faults on the SINUMERIK 802D sl control system. It explains how to evaluate special situations while the machine is running and outlines safety precautions.
The document contains a system fault alarm overview, a comprehensive alarm list (including NCK, ISO, cycle, Profibus and PLC alarms), an action‑code table, and detailed descriptions of system responses and alarm‑deletion criteria. Appendices provide reference tables and an index. This manual is written in Chinese.
| Software version | 1.4 |
|---|---|
| Document version date | 06/2007 |
| Order number | 6FC5398-2CP10-1RA0 |
| General alarm number range | 002000–009999 |
It covers SINUMERIK 802D sl software version 1.4.
General alarms are numbered 002000–009999.
The manual is for designers, debugging personnel, machine‑tool operators, and maintenance and service staff.
