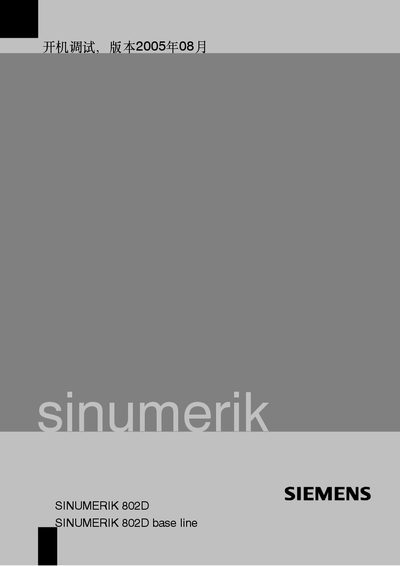

Siemens SINUMERIK 802D Baseline Startup Debugging Manual

This is a manual for the commissioning of SINUMERIK 802D control system, which mainly includes the installation of the control system, the first boot commissioning, the spindle commissioning, PLC commissioning, batch commissioning, data backup, software upgrade, machine tool / setting data and so on

Brand: Siemens
Category: Automation control Equipment
Document type: Service Manual
Language: Chinese
Pages: 176
File format: PDF
File size: 2 MB
Updated: 30 September, 2023
Models: SINUMERIK 802D, 802D
MD5 checksum: 19E7483E26C44F32BEFE2343169C4DFA
PDF: Siemens SINUMERIK 802D Baseline Startup Debugging Manual PDF

About this manual

This manual provides detailed instructions for the installation and initial power‑on of the SINUMERIK 802D and 802D baseline control systems. It covers hardware connections, safety warnings, and configuration steps required before the machine can be operated.

Subsequent sections describe spindle and PLC debugging, batch processing, data backup methods, software upgrades, and ISO mode setup. The document is intended for machine‑tool manufacturers and service personnel who need to commission and maintain these CNC control systems. This manual is written in Chinese.

What's inside

Safety Information
Control System Installation
First Power‑On Debugging
Spindle Debugging
PLC Debugging
Batch Debugging and Data Backup
Software Upgrade
Machine Tool Data and Settings
ISO Mode Debugging
