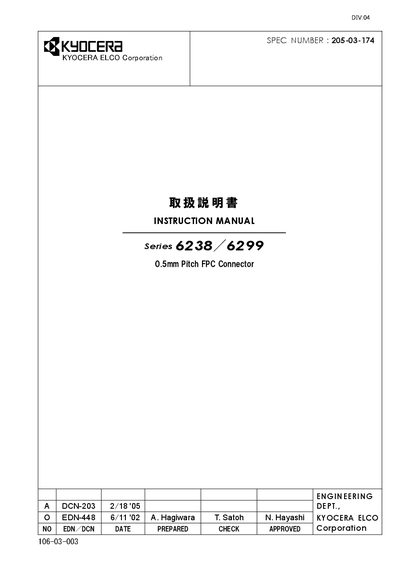

This document provides instructions for using the Series 6238／6299 0.5mm Pitch FPC Connector, including the names of each part, precautions, and operation methods.
This manual describes the 0.5 mm pitch, one‑touch lock type FPC/FFC connector of the 6238/6299 series, intended for high‑density mounting in compact devices. It outlines the parts of the connector and emphasizes careful handling due to its small size.
Key sections cover precautions, board mounting, insertion and pulling out of the FPC/FFC, slider operation, flexion limits, other cautions, and recommended storage conditions. The document provides step‑by‑step instructions and safety notes to ensure reliable connector performance. This manual is written in Japanese.
| Pitch | 0.5 mm |
|---|---|
| Lock type | One‑touch lock |
| Slider opening angle | ≈135° |
Do not push or pull the slider with its center before insertion.
Store the connectors at normal temperature and humidity in a dust‑free environment, avoiding pressure on contact tails and anchor plates.
