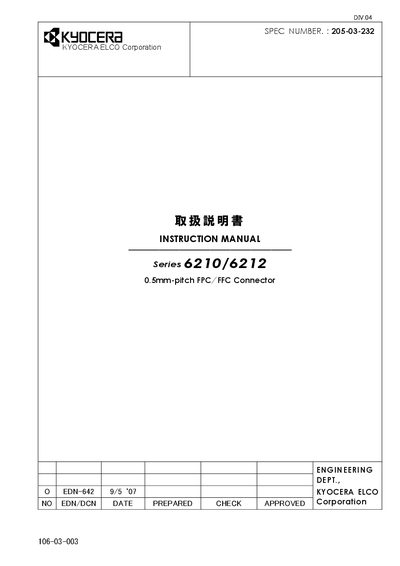

This document is the instruction manual for the 6210/6212 series 0.5mm-pitch FPC／FFC Connector, which introduces the precautions in handling the product, including mounting on the board, inserting FPC／FFC, pulling out FPC／FFC, upward load applied to the connector and bending FPC／FFC.
The Series 6210/6212 is a 0.5 mm‑pitch FPC/FFC connector produced by Kyocera ELCO Corporation. It is intended for board mounting and requires careful handling to avoid damage.
The instruction manual covers part identification, precautions in handling, proper mounting on the board, correct insertion and removal of the FPC/FFC cable, load limits, bending considerations, other safety notes, and recommended storage conditions.
| Connector type | FPC/FFC |
|---|---|
| Pitch | 0.5 mm |
| Series | 6210/6212 |
Connectors should be mounted with a mounting machine; if mounted manually, the contact tails must not be touched.
Do not apply load in the directions indicated by the arrows, as this can cause the connector to peel off.
Store the connectors at normal temperature and humidity, free of dust, and avoid any pressure on contact tails and anchor plates when the tape is removed.
