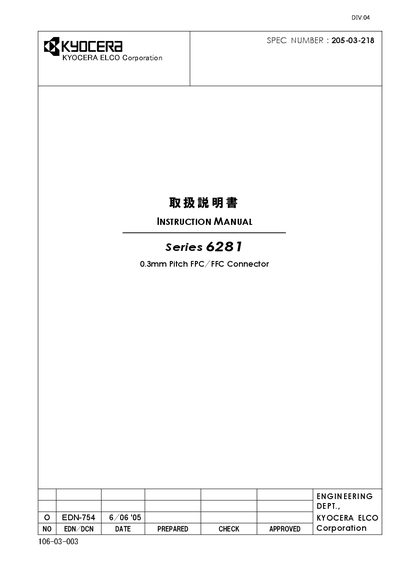

This is the instruction manual of 6281 series 0.3mm pitch FPC/FFC connector, which includes outline, name of each part, precautions in handling, other precautions, storage and management of the products etc.
This manual describes the one‑touch locking type connector with a 0.3 mm pitch and 1.25 mm height, intended for high‑density FPC/FFC applications. It outlines the parts of the connector, including the slider, insulator, anchor plate, and how to correctly mount and handle the component.
Detailed procedures cover mounting on a board, inserting and pulling out the FPC/FFC cable, operating the slider without exceeding its 125° opening angle, and precautions to avoid excess load on contacts. Storage recommendations and other safety cautions are also provided.
| Connector pitch | 0.3 mm |
|---|---|
| Connector height | 1.25 mm |
| Locking type | One‑touch bottom contact |
| Slider opening angle | Approximately 125° upward |
| Storage conditions | Normal temperature, humidity, no dust |
Open the slider vertically by pushing it up, never push it into the insulator side; the slider opens up to about 125°.
Do not touch the contact tails, use a mounting machine when possible, and avoid applying excess load to the contacts.
Store connectors under normal temperature and humidity, keep them dust‑free, and do not apply pressure to contact tails or anchor plates.
