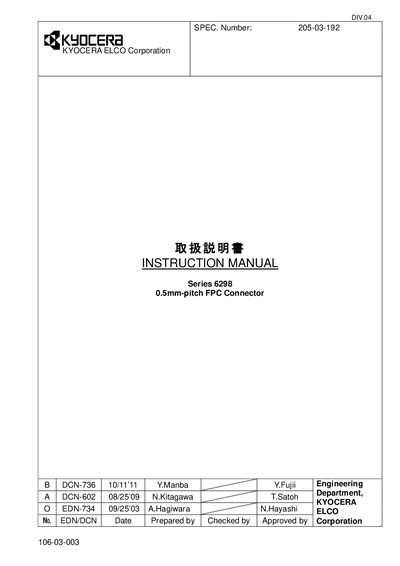

Kyocera 6298 Series 0.5mm-pitch FPC Connector Instruction Manual

About this manual

This manual provides the scope and part names for the Kyocera 6298 series 0.5 mm‑pitch one‑touch locking FPC connector. It details precautions for handling, mounting on a PCB, inserting and withdrawing the FPC, and flexure considerations.

Additional sections cover other cautions, storage conditions, and contact information for technical support. The guidance includes proper actuator operation, jig usage, and limits on applied load to prevent damage to contacts and metal tabs. This manual is written in Japanese.

What's inside

• Scope
• Name of Each Part
• Cautions in Handling
• Mounting on Board
• Inserting the FPC
• Withdrawing the FPC
• Flexure of an FPC
• Other Cautions
• Storage and Control

Specifications

Frequently asked questions

How should the actuator be opened for proper FPC insertion?

The actuator must be opened fully to 90 degrees before inserting the FPC.

How should the FPC be inserted into the connector?

Insert the FPC with the conductor side downward and push it until it reaches the deepest position of the slot.

What storage conditions are recommended for the connector?

Store the product at normal temperature and humidity in a dust‑free environment, and avoid pressure on contact tails and metal tabs.
