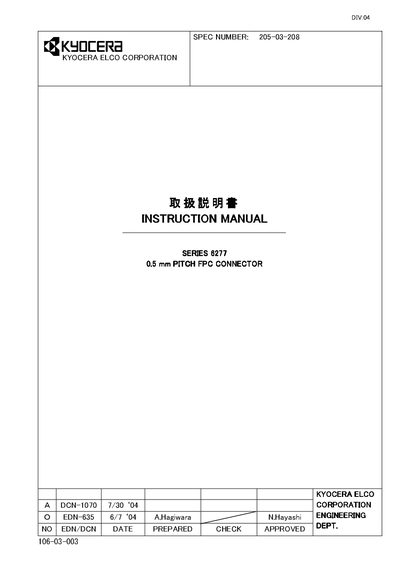

This is a KYOCERA ELCO 0.5 mm PITCH FPC CONNECTOR INSTRUCTION MANUAL, which mainly introduces the product scope, name of each part and notes on handling.
The Series 6277 is a 0.5 mm pitch, one‑touch‑lock type FPC connector. This manual provides handling notes, part names, and safety precautions for mounting, inserting, extracting, and flexing the FPC.
It also includes storage guidelines and contact information for technical support. This manual is written in Japanese.
| Pitch | 0.5 mm |
|---|---|
| Connector type | One‑touch‑lock |
| Slider opening angle | 90 degrees (max) |
| Maximum load on slider | 0.1 kgf |
The connector has a 0.5 mm pitch.
Open the slider to 90 degrees and do not apply more than 0.1 kgf of load.
Store it at normal temperature and humidity in a dust‑free environment, keeping the embossed tape on or avoiding pressure on contact tails.
