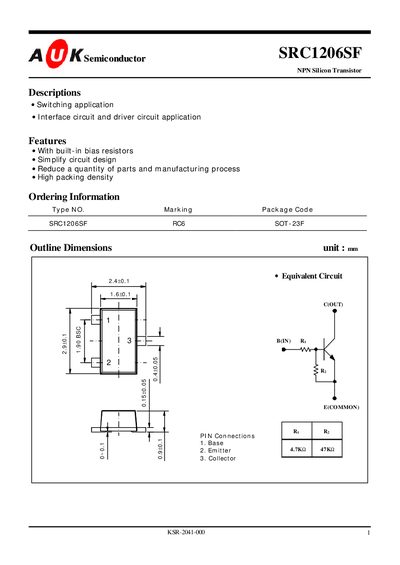

The SRC1206SF is an NPN silicon transistor designed for switching and interface driver applications. It features built‑in bias resistors, high packing density, and a SOT‑23F package to simplify circuit design and reduce part count.
The document lists absolute maximum ratings such as 50 V output voltage, 20 V input voltage, 100 mA output current, and 200 mW power dissipation, along with electrical characteristics and characteristic curves for gain, output current, and voltage.
| Maximum Output Voltage (Vo) | 50 V |
|---|---|
| Maximum Input Voltage (Vi) | 20 V |
| Maximum Output Current (Io) | 100 mA |
| Power Dissipation (Pp) | 200 mW |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tst) | -55 ~ 150 °C |
The maximum output voltage is 50 V.
The device can handle up to 100 mA of output current.
