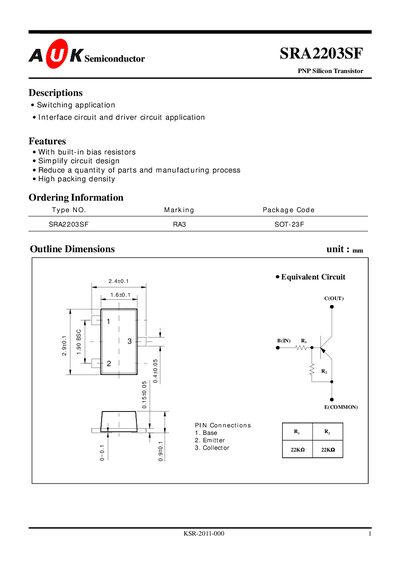

This document describes the features and characteristics of the KSR-2011-000 1 SRA2203SF PNP silicon transistor, including its switching application, interface circuit and driver circuit application, built-in bias resistors to simplify circuit design, and reduction in quantity of parts and manufacturing process.
The SRA2203SF is a PNP silicon transistor designed for switching applications. It features built‑in bias resistors, high packing density, and a compact SOT‑23F package, simplifying circuit design and reducing part count.
The datasheet lists absolute maximum ratings such as -50 V output voltage, -40 V input voltage, and -100 mA output current, along with electrical characteristics, pin connections, and characteristic curves for various operating conditions.
| Maximum Output Voltage | -50 V |
|---|---|
| Maximum Output Current | -100 mA |
