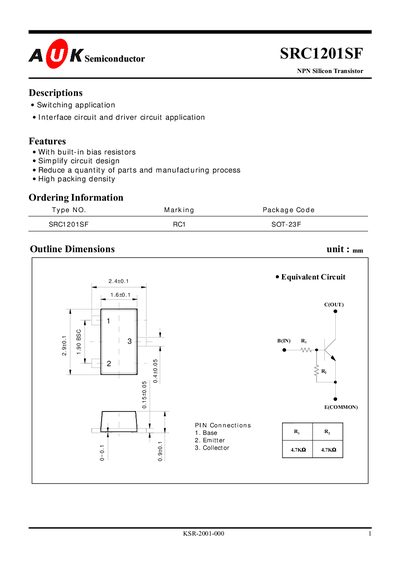

KSR-2001-000 1 SRC1201SF is an NPN silicon transistor used for switching applications, interface circuit, and driver circuit applications. It features built-in bias resistors to simplify circuit design and reduce the number of parts and manufacturing processes. It also has high packing density.
The SRC1201SF NPN silicon transistor is intended for switching applications and includes built‑in bias resistors to simplify circuit design and reduce part count. It is offered in a compact SOT‑23F package with a high packing density.
Key electrical characteristics include a maximum output voltage of 50 V, maximum input voltage of 20 V, and a maximum output current of 100 mA. The device can dissipate up to 200 mW, operates up to a junction temperature of 150 °C, and features a transition frequency of 200 MHz.
| Maximum Output Voltage (V_O) | 50 V |
|---|---|
| Maximum Input Voltage (V_I) | 20 V |
| Maximum Output Current (I_O) | 100 mA |
| Power Dissipation (P_D) | 200 mW |
| Junction Temperature (T_J) | 150 °C |
| Storage Temperature Range | -55 ~ 150 °C |
| Input Current (I_I) | 1.8 mA |
The maximum output voltage is 50 V.
The transistor has three pins: Base, Emitter, and Collector.
