This document is about SRA2206EF PNP Silicon Transistor. It introduces the features and characteristics of the product, including application scenarios, appearance size, package code, pin connection, absolute maximum ratings, electrical characteristics, etc.

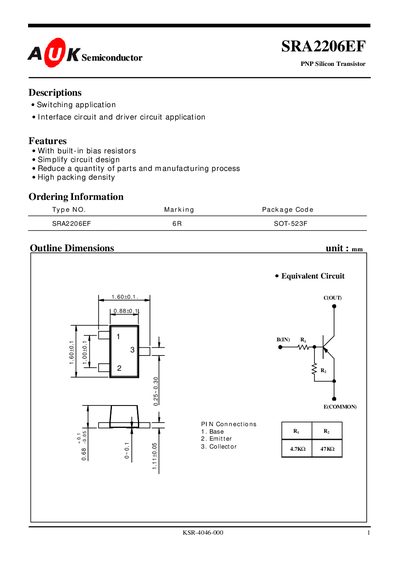

The SRA2206EF is a PNP silicon transistor offered by A K Semiconductor. The datasheet provides a concise description, key features such as built‑in bias resistors and high packing density, and ordering information including package code SOT‑523F.
Detailed electrical characteristics are listed, covering absolute maximum ratings, typical performance parameters, and characteristic curves for output voltage, input voltage, and gain. These data help designers select the part for switching and interface circuit applications.
| Maximum Output Voltage (Vo) | -50 V |
|---|---|
| Maximum Input Voltage (Vi) | -20 V |
| Maximum Output Current (Io) | -100 mA |
| Power Dissipation (Pp) | 150 mW |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Transition Frequency (ft) | 200 MHz |
The maximum output voltage is -50 V.
The transistor can dissipate up to 150 mW.
It is supplied in an SOT‑523F package.
The transition frequency is specified as 200 MHz.
