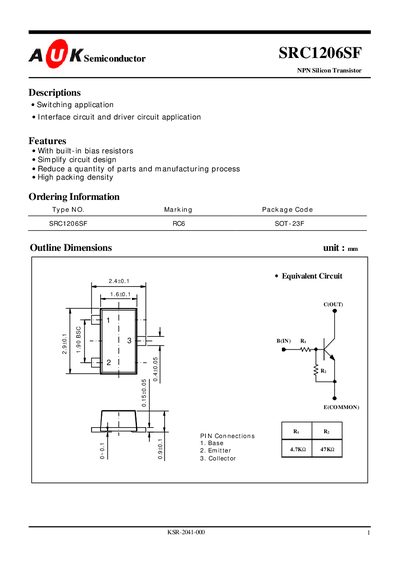

A K Semiconductor SRC1206SF NPN Transistor Datasheet
The SRC1206SF is an NPN silicon transistor designed for switching, interface circuit, and driver circuit applications. It features built‑in bias resistors, a high packing density, and a simplified circuit design that reduces part count.
The datasheet lists absolute maximum ratings such as a 50 V collector‑emitter voltage and 100 mA collector current, as well as electrical characteristics including gain curves and transition frequency. Characteristic curves illustrate output current versus input voltage for both ON and OFF states.
AUK SRC1206SF specifications
| Output Voltage (Vo) | 50 V |
|---|---|
| Input Voltage (Vi) | 20 V |
| Output Current (Io) | 100 mA |
| Power Dissipation (Pp) | 200 mW |
| Junction Temperature (Tj) | 150 °C |
Source: A K Semiconductor SRC1206SF NPN Transistor Datasheet
