This is a Chinese technical manual for the AR-3200+ dot matrix printer, which introduces the general specifications, appearance and structure, control panel, parallel interface, serial interface, EE-PROM mode, etc. of the printer.

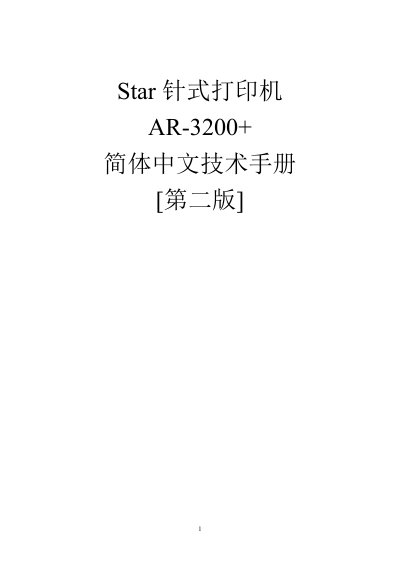

This service manual covers the Star Micronics AR-3200+ receipt printer. It includes an overview of the printer, hardware description, wiring diagrams, EDS settings, EE‑PROM handling, and maintenance instructions.
The document is organized into sections such as Overview, Hardware Overview, Wiring Diagram, EDS Settings, EE‑PROM, specifications, and troubleshooting. It provides dimensional data, power requirements, interface details, and reliability figures for technicians and service engineers. This manual is written in Chinese.
| Dimensions (W x D x H) | 590 mm x 322 mm x 127 mm |
|---|---|
| Input voltage | 220 – 240 V AC, 50/60 Hz |
| Power consumption | 50 W (ASCII mode) |
| MTBF | 5000 hrs |
| Interfaces | Centronics parallel port, RS‑232C serial port |
The printer operates on 220 – 240 V AC at 50/60 Hz.
It measures 590 mm × 322 mm × 127 mm (width × depth × height).
The printer includes a Centronics parallel port and an RS‑232C serial port.
The printer is rated for a mean time between failures of 5,000 hours.
