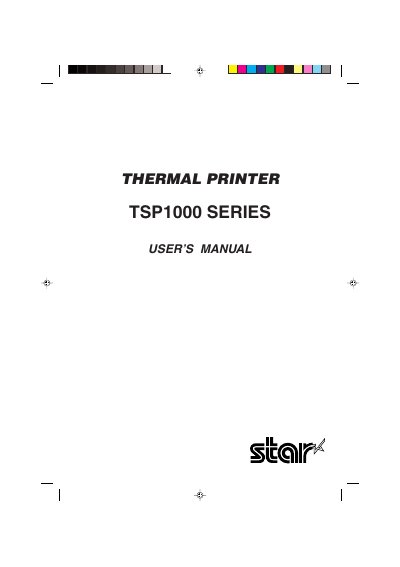

This manual guides users through unpacking, installation, and safe operation of the TSP1000 Series thermal printer. It includes warnings, recommended placement, and step‑by‑step instructions for connecting power, cables, and consumable parts.
The document also details printer functions such as loading roll paper, adjusting sensors, preventing jams, and cleaning. Technical specifications, interface options, and optional accessories are listed in the appendix for reference.
| Printing method | Direct line thermal printing |
|---|---|
| Print speed | Max. 1440 dots/sec. (180 mm/sec.) |
| Dot density | 203 dpi (8 dots/mm) |
| Printing width | Max. 80 mm |
| Overall dimension | 161 × 307 × 249 mm |
| Weight | Approx. 3.0 kg |
| Noise level | Approx. 57 dB |
| Auto cutter cutting frequency | Max. 20 cuts per minute |
| Input voltage | DC 24 V ±10% |
| Current consumption (operating) | Approx. 2.0 A |
| Thermal paper size | Thickness 80~105 µm, Width 82.5 ±0.5 mm, Roll ≤180 mm |
It uses thermal paper with a thickness of 80‑105 µm, a width of 82.5 ± 0.5 mm, and an outer roll diameter of 180 mm or less.
The printer requires a DC 24 V ± 10 % supply, with at least 2.0 A current capability.
The auto cutter can make up to 20 cuts per minute.
The printer can print up to 1440 dots per second (180 mm per second).
