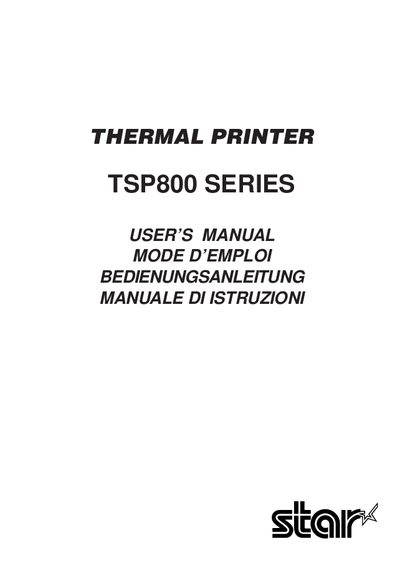

This manual provides operating instructions for TSP800 series thermal printers
This manual covers everything you need to install and operate the Star TSP800 Series thermal printer, including placement, mounting hardware, and connection of cables and power adapters. Detailed sections explain the control panel functions, paper loading, sensor adjustment, and how to prevent and clear paper jams.
Appendices provide technical specifications, dip‑switch settings, interface details for parallel and serial connections, peripheral drive circuits, and memory switch configurations. Contact information for Star Micronics subsidiaries and a URL for the latest revision are also included.
| Printer weight (including full roll) | approximately 2.9 kg |
|---|---|
| Wall‑mounting bracket outer dimensions | 121 × 168 × 14.5 mm (W × H × D) |
| Wall‑mounting bracket weight | approx. 0.27 kg |
| Recommended screw diameter for mounting | 4 mm |
| Minimum load capacity of mounting screws | 12 kgf (118 N) or more |
The printer weighs approximately 2.9 kg when loaded with a full roll of paper.
Use screws with a diameter of 4 mm for mounting the wall bracket.
The screws must be able to withstand at least 12 kgf (118 N).
Visit http://www.star-micronics.co.jp/service/frame_sp_spr_e.htm for the latest revision.
