This document is an important safety manual that includes instructions and precautions for using the apparatus. It also provides environmental information about the materials used and suggestions for recycling.

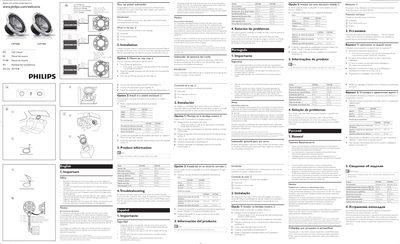

This manual begins with important safety information and an overview of the subwoofer’s features. It lists the contents of the package and explains how to register the product on Philips' website.
Two installation methods are described: mounting the subwoofer on the rear tray of the car or installing it in a sealed enclosure. Detailed dimensions for each model, wiring guidance, product specifications, and a troubleshooting section are also included.
| Speaker type | 25 cm subwoofer (CSP1000), 30 cm subwoofer (CSP1200) |
|---|---|
| RMS power | 250 W (CSP1000), 400 W (CSP1200) |
| Peak music power | 1000 W (CSP1000), 1600 W (CSP1200) |
| Sensitivity | 88 dB (CSP1000), 89 dB (CSP1200) |
| Frequency response | 25‑1000 Hz (CSP1000), 20‑1500 Hz (CSP1200) |
| Impedance | 4 Ω (both models) |
| Magnet mass | 55.4 oz (both models) |
| Mounting depth | 124 mm (CSP1000), 146 mm (CSP1200) |
A depth of at least 124 mm is required for the CSP1000 and 146 mm for the CSP1200.
The package includes ten 4 × 50 mm screws.
Register the product at www.philips.com/welcome.
The CSP1000 is rated at 250 W RMS, while the CSP1200 is rated at 400 W RMS.
