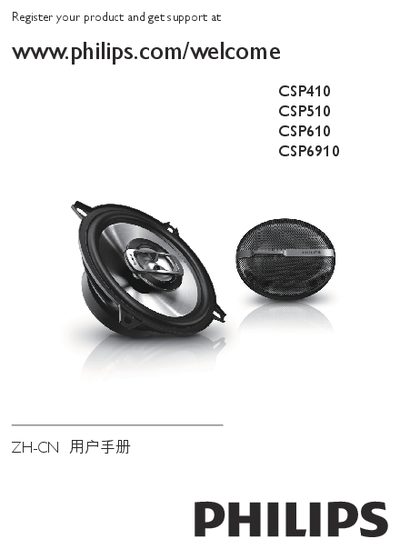

The document provides important information and precautions for the Philips CSP410 CSP510 CSP610 CSP6910 ZH-CN speaker system. It also includes environmental information and installation instructions for the product.
This manual covers Philips' CSP series car stereo speakers, offering a brief product overview, safety information, and a list of items included in the package. It explains how to register the product for support and describes the speaker types and dimensions.
The document details two installation options (door mounting and rear‑seat tray mounting), provides step‑by‑step wiring instructions, presents detailed specifications for each model, and includes a troubleshooting section with environmental and safety notes. This manual is written in Chinese.
| CSP410 Rated Power | 30 W |
|---|---|
| CSP410 Peak Power | 150 W |
| CSP410 Sensitivity | 88 dB |
| CSP410 Frequency Response | 50‑30 kHz |
| CSP410 Impedance | 4 Ω |
| CSP410 Magnet Mass | 4.4 Oz |
| CSP610 Rated Power | 40 W |
| CSP610 Peak Power | 210 W |
| CSP610 Sensitivity | 90 dB |
| CSP610 Frequency Response | 40‑30 kHz |
| CSP610 Magnet Mass | 7.6 Oz |
| CSP6910 Sensitivity | 90 dB |
The installation of the low‑frequency speaker requires at least 48 mm of depth.
Connect the black wire to the left speaker, and the black wire with a white stripe to the right speaker, ensuring correct polarity.
