Dinion IP cameras are a hybrid system with modern features that support both traditional direct analog output and modern network transmission. They can simultaneously transmit video on two channels. Equipped with the acclaimed Dinion digital imaging technology, they provide proven, reliable service that meets any demanding security and surveillance requirements.

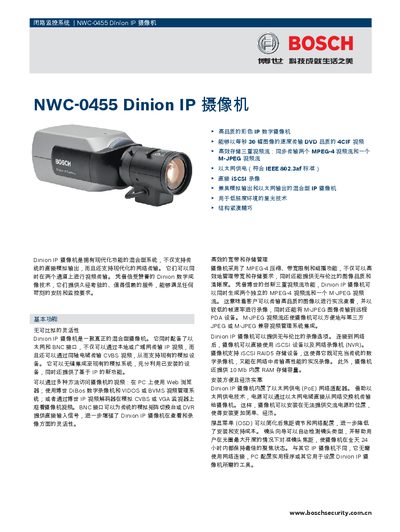

The NWC-0455 Dinion IP Camera is a hybrid security camera that supports both traditional analog CVBS output and modern IP video transmission. It offers dual video streams, MPEG‑4 compression, M‑JPEG streaming, PoE power, and star‑light technology for low‑light environments.
This manual covers the camera’s technical specifications, installation steps, PoE configuration, network setup, alarm I/O connections, and operating features such as motion detection, video analytics, and firmware updates. This manual is written in Chinese.
| Sensor type | 1/3 inch interline transfer CCD |
|---|---|
| Maximum resolution | 4CIF (704×576) at 30 fps (NTSC) / 25 fps (PAL) |
| Power input voltage | +11 to +36 VDC (700 mA) or 12 to 28 VAC (700 mA) |
| Power over Ethernet (PoE) | IEEE 802.3af compliant |
| Video compression | MPEG‑4 and M‑JPEG streams |
| Minimum illumination (color) | 0.65 lx (0.065 fc) |
| Dimensions (H×W×D) | 59 mm × 67 mm × 123 mm |
| Weight (without lens) | ≈0.45 kg |
The camera includes an Ethernet Power over Ethernet (PoE) adapter that receives power directly from a PoE‑enabled network switch.
It uses MPEG‑4 compression for efficient bandwidth use and also provides an M‑JPEG video stream.
The camera can be powered with +11 V to +36 VDC (700 mA) or 12 V to 28 VAC (700 mA).
