The LTC 0435 series is a digital color CCD camera with 1/3 inch image format, with excellent sensitivity and clarity, which can perform best in almost any occasion. This camera adopts automatic black level technology, which can enhance the contrast by eliminating glare on the image. The range of white balance is very wide, so that vivid color images can be captured both indoors and outdoors. The ability to power either DC or AC increases the flexibility of system design and reduces training and spare parts requirements.

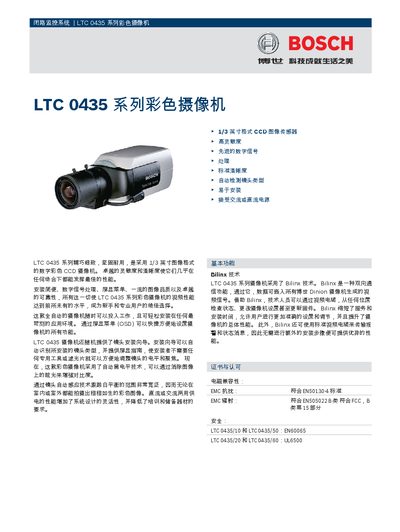

This manual describes the Bosch LTC 0435 series color camcorder, a 1/3‑inch CCD digital camera designed for both novice and professional users. It highlights the camera’s high sensitivity, automatic black level, white balance, and lens‑type detection, as well as its dual AC/DC power capability.
The document includes detailed technical specifications, wiring and connector information, accessory listings, and guidance on using Bosch’s Bilinx technology for remote status monitoring, setting adjustments, and firmware updates. This manual is written in Chinese.
| Effective picture pixels (PAL) | 500 × 582 |
|---|---|
| Power consumption | 4 W (without lens) |
| Rated voltage (LTC 0435/10) | 12 VDC / 24 VAC, 50 Hz |
| Operating temperature | -20 °C to 50 °C |
| Weight | 0.45 kg (0.99 lb) |
