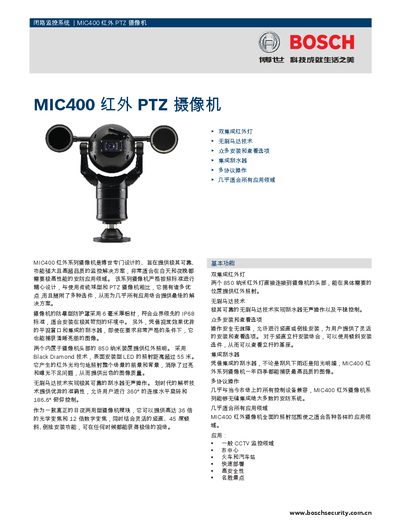

MIC400 infrared camera is a powerful and high-quality surveillance solution designed by Bosch. It is suitable for both day and night security applications. With features such as a rugged protective housing, built-in infrared lights, and a wiper, it provides clear and vivid images. It also has high optical zoom, compatibility with multiple protocols, and versatility for various application areas.
The MIC400 infrared PTZ camera from Bosch offers 36× optical and 12× digital zoom, dual integrated 850 nm infrared LEDs with a 55 m illumination range, and a robust IP68‑rated aluminum housing with a built‑in wiper for reliable operation in harsh environments. It supports vertical, 45° tilt, and upside‑down mounting, making it suitable for city centers, stations, and tourist sites.
This guide covers basic functions, installation and configuration options, ordering information, technical and electrical specifications, optional accessories, and contact details for Bosch Security. It includes wiring diagrams, protocol compatibility (Bosch, Pelco P/D, FV), and performance data such as minimum illumination and power consumption. This manual is written in Chinese.
| Image sensor | 1/4 inch Exview CCD |
|---|---|
| Optical zoom | 36× optical, 12× digital |
| Infrared illumination distance | 55 m |
| IP rating | IP68 |
| Operating temperature | -20 °C to +50 °C |
| Maximum power consumption | 50 W |
The camera can operate with as little as 0.01 lux (F1.4, 1/4 sec NTSC, 1/3 sec PAL) when infrared is on.
The MIC400 can be installed vertically, upside‑down, or at a 45° tilt.
