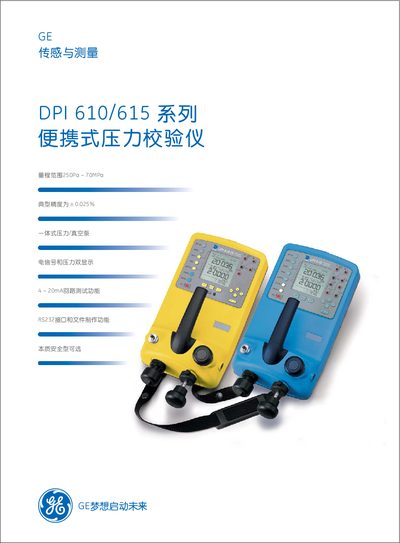

This document describes the features and characteristics of the GE DPI 610/615 pressure indicators. It has a measurement range of 250Pa to 70MPa with an accuracy of 0.025%. The product supports 4~20mA and RS232 outputs, and is suitable for pressure measurements above 20 bar g. It also supports RS232 communication with Linkpak-W and Intecal-W. The pressure indicator is suitable for pressure ranges from -85kPa to 2MPa.
The GE DPI 610/615 is a portable pressure calibrator that measures pressure, temperature and other parameters. It offers 4‑20 mA output, RS‑232 communication, and on‑board data storage for up to 92 kB of measurement data.
The device supports up to ten external pressure sensors, includes leak‑test and snapshot functions, and complies with safety standards such as ATEX, CENELEC, EN‑61010 and IP54. It operates from –10 °C to +50 °C and is supplied with a 3 kg, 300 × 170 × 140 mm housing. This manual is written in Chinese.
| Pressure range | 250 Pa – 70 MPa |
|---|---|
| Internal liquid range | 0 – 40 MPa |
| Output signal | 4‑20 mA current loop |
| Communication interface | RS‑232 |
| Data storage capacity | 92 kB |
| Operating temperature | -10 °C to +50 °C |
| Dimensions (W×H×D) | 300 mm × 170 mm × 140 mm |
| Weight | 3 kg |
The device measures pressure from 250 Pa up to 70 MPa.
It provides a 4‑20 mA current‑loop output and RS‑232 data communication.
