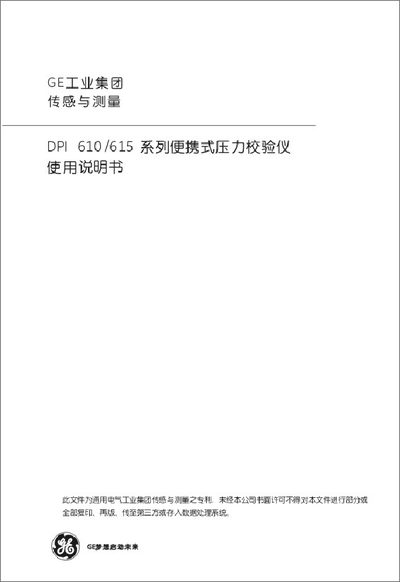

GE DPI 610/615 Portable Pressure Calibrator User Manual
This manual covers safety precautions, proper handling, and maintenance of the DPI 610/615 series portable pressure calibrator. It emphasizes the need to follow the safety symbols and to use only the supplied test probes and approved batteries.
The document also describes the device’s functional features, such as pressure measurement ranges, output signals, temperature monitoring, and communication interfaces. Technical specifications, program functions, and data upload procedures are provided in the appendices. This manual is written in Chinese.
GE DPI 610 specifications
| Pressure range | -100 kPa to 2 MPa (HC up to 40 MPa) |
|---|---|
| Maximum output current | 25 mA |
| Output voltage range | 0–50 V DC |
| Output current (second channel) | 55 mA DC |
| Recommended battery usage | Do not use Ni‑Cd or Ni‑MH batteries |
| Communication interface | RS‑232 |
| Temperature measurement | Provides ambient temperature measurement |
Source: GE DPI 610/615 Portable Pressure Calibrator User Manual
All GE DPI 610 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions should be followed when using the DPI 610/615 calibrator?
The manual states that users must read all safety guidance, use only the supplied test probe, avoid misuse, and follow the hazard triangle symbols for any dangerous conditions.
From: GE DPI 610/615 Portable Pressure Calibrator User Manual
What is the pressure measurement range of the DPI 610/615?
The calibrator can measure pressures from –100 kPa up to 2 MPa, with the HC version extending to 40 MPa.
From: GE DPI 610/615 Portable Pressure Calibrator User Manual
What is the pressure measurement range of the DPI 610/615?
The device measures pressure from 250 Pa up to 70 MPa.
What output signal does the calibrator provide?
It provides a 4‑20 mA current‑loop output and RS‑232 data communication.
