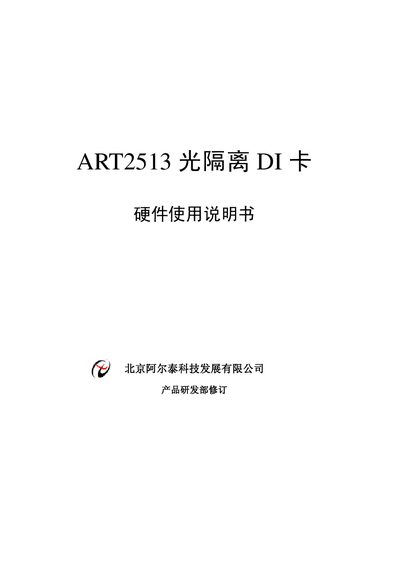

ART2513 Optical Isolation DI Card Hardware User Manual mainly introduces the product function overview, component layout diagram, DI digital quantity signal input connector, various signal connection methods, address description, product application precautions, calibration, warranty and other content.
The ART2513 is a PC/104 optical isolation digital input (DI) card that provides 16 isolated channels for dry‑contact, wet‑contact and common‑anode signals. It supports high‑level inputs up to +30 V and low‑level inputs from 0 V to +1 V, with an isolation voltage of 3750 V.
The manual describes the board layout, connector pinouts, address configuration via dip switches, interrupt level selection, and includes safety notes, calibration guidance and warranty information. This manual is written in Chinese.
| Number of isolated digital inputs | 16 |
|---|---|
| Input type | Dry‑contact, wet‑contact (common‑anode) |
| Isolation voltage | 3750 V |
| Interrupt request channels | 1 (DID) |
| Supported IRQ levels | IRQ3, IRQ4, IRQ5, IRQ6, IRQ7, IRQ9, IRQ10, IRQ11 |
| Interrupt signal active level | High level |
| Default board base address | 300H |
The ART2513 provides 16 isolated digital input channels.
The isolation voltage is rated at 3750 V.
The base address is set with the S1 dip‑switches to a value between 200H and 3F0H that is divisible by 16; the default is 300H.
Supported IRQ levels are IRQ3, IRQ4, IRQ5, IRQ6, IRQ7, IRQ9, IRQ10, and IRQ11.
