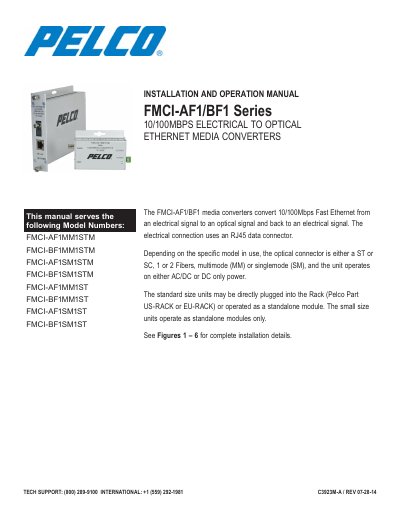

10/100Mbps Electrical to Optical Ethernet Media Converters
The FMCI-AF1/BF1 Series media converters facilitate the conversion of 10/100Mbps Fast Ethernet signals between electrical and optical formats. These units support various configurations, including ST or SC connectors, single or dual fiber options, and multimode or singlemode operation. They are designed to operate on AC/DC or DC-only power and can be installed as standalone modules or rack-mounted units.
| Data Rate | 10/100Mbps |
|---|---|
| Connector Type | RJ45 data connector |
| Optical Connector | ST or SC |
| Fiber Count | 1 or 2 Fibers |
| Power Supply (Surface Mount) | 8-15 VDC @ 2W |
| Power Supply (Rack Mount) | 22-27 VAC @ 100mA |
| Standard Unit Dimensions | 13.2cm [5.2in] x 11.9cm [4.7in] |
| Small Unit Dimensions | 8.38cm [3.3in] x 2.7cm [1.06in] |
The optical connector is either a ST or SC.
The manual specifies a maximum distance of 100m (328ft) for CAT5e/6 connections.
