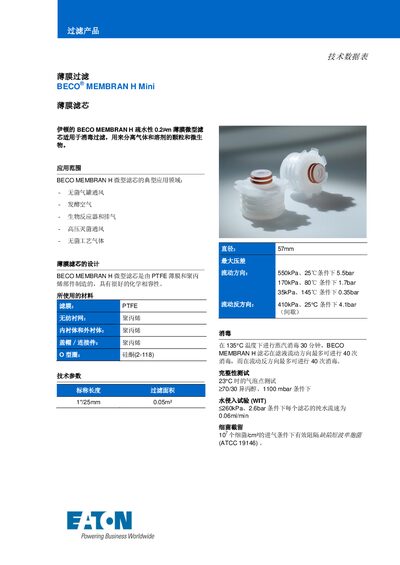

The Eaton BECO MEMBRAN H Mini technical data sheet provides specifications, materials, and usage guidelines for the 0.2 µm PTFE membrane filter.
The BECO MEMBRAN H Mini is a 0.2 µm hydrophobic PTFE membrane filter designed for sterilizing filtration in applications such as sterile gas venting, fermentation air, bioreactors, and exhaust. It is suitable for high‑pressure sterilization venting and sterile process gases.
The filter consists of a PTFE membrane with polypropylene components (non‑woven support, inner/outer shells, caps, and silicone O‑ring). Key parameters include a nominal length of 1 in (25 mm), filter area of 0.05 m², diameter 57 mm, and defined maximum pressure drops at various temperatures. It can be steam‑sterilized at 135 °C for 30 min up to 40 cycles, has a pure‑water flow rate of 0.06 ml/min, and provides bacterial retention of 10⁷ CFU/cm². Ordering information, storage recommendations, and disposal guidelines are also provided. This manual is written in Chinese.
| Nominal Length | 1" / 25 mm |
|---|---|
| Diameter | 57 mm |
| Maximum Pressure Drop (flow direction, 25 °C) | 5.5 bar (550 kPa) |
| Maximum Pressure Drop (flow direction, 80 °C) | 1.7 bar (170 kPa) |
| Maximum Pressure Drop (flow direction, 145 °C) | 0.35 bar (35 kPa) |
| Maximum Pressure Drop (reverse flow, 25 °C) | 4.1 bar (410 kPa) |
| Pure Water Flow Rate | 0.06 ml/min |
| Bacterial Retention | Effective against 10⁷ CFU/cm² |
| Pore Size | 0.20 µm |
| Shelf Life | Use within 60 months of production date |
The filter uses a PTFE membrane, polypropylene non‑woven support, polypropylene inner and outer shells, polypropylene caps/connectors, and a silicone O‑ring.
Store in the original packaging in a dry, odor‑free, UV‑protected location and use within 60 months of the production date.
The maximum pressure drop is 5.5 bar (550 kPa).
