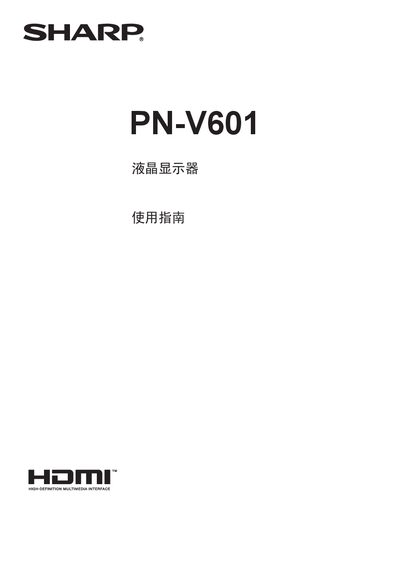

This is the user manual for the PN-V601 liquid crystal display, which introduces the operation method, setting method and detailed information of the display
This manual explains how to operate the Sharp PN‑V601 LCD monitor, covering basic button functions, remote‑control modes, menu navigation, and input selection. Detailed sections describe PC connections via RS‑232, LAN, and HDMI, as well as optional expansion modules.
Additional chapters cover initialization, function‑limitation settings, gamma and picture adjustments, and a full troubleshooting guide. Pin‑out tables for DVI‑D, D‑sub, HDMI, and RS‑232 connectors are provided for installation and service technicians. This manual is written in Chinese.
| DVI‑D input pin 1 function | TMDS data 2‑ |
|---|---|
| DVI‑D input pin 2 function | TMDS data 2+ |
| RS‑232C output pin 1 function | TMDS data 2+ |
| RS‑232C output pin 5 function | GND (ground) |
Press the MUTE button on the monitor to mute the sound; press it again to restore the previous volume level.
Press the INPUT button and select the desired input (e.g., HDMI, DVI‑D, PC‑D‑sub) from the menu.
