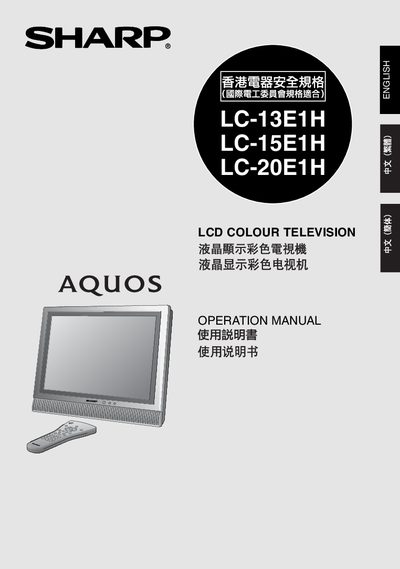

Sharp LC-13E1H / LC-15E1H / LC-20E1H LCD Colour Television User Manual

This document is an operation manual for LC-13E1H LC-15E1H LC-20E1H English LCD color televisions, describing the functions and operation methods of the products.

Brand: Sharp
Category: Television
Document type: User Manual
Language: English
Pages: 37
File format: PDF
File size: 4.8 MB
Published: 21 September, 2011
Updated: 28 September, 2023
MD5 checksum: 29BC371FC2D5B5D85C14C9BA1D68B345
PDF: Sharp LC-13E1H / LC-15E1H / LC-20E1H LCD Colour Television User Manual PDF

About this manual

This manual covers safety precautions, preparation steps, and proper installation of the Sharp LCD colour televisions. It explains how to connect the power supply, attach the antenna, and install optional accessories while emphasizing warnings about water, foreign objects, and improper handling.

Detailed operating instructions are provided for the remote control, basic TV functions, image and sound adjustments, external device connections, and troubleshooting. The document also lists the required power specifications and battery types for the remote, ensuring correct usage and maintenance of the units.

What's inside

Safety Precautions
Preparing the TV
Power Connection
Antenna Connection
Remote Control Setup
Basic Operation
Image Adjustment
Sound Adjustment
External Device Connection
Troubleshooting

Specifications

DC Power Input (LC-13E1H / LC-15E1H)	12 V
DC Power Input (LC-20E1H)	13 V
Remote Control Batteries	2 × AAA (UM/SUM‑4)

Frequently asked questions

What voltage should be used for the power connection?

Use a 12 V DC supply for the LC-13E1H and LC-15E1H models, and a 13 V DC supply for the LC-20E1H model.

What batteries are required for the remote control?

The remote control uses two AAA (UM/SUM‑4) batteries.
