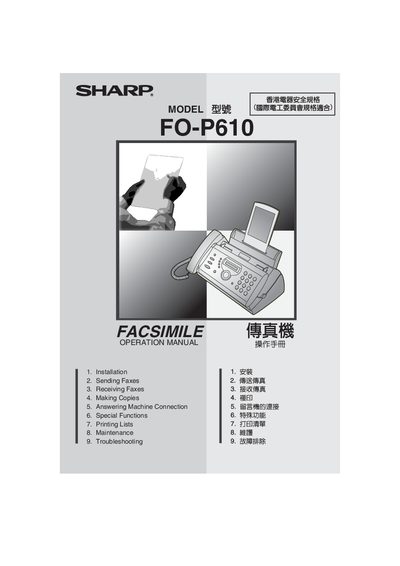

This is an operation manual for Sharp's fax machine.
This manual covers everything needed to set up and use the Sharp FO-P610 facsimile. It includes step‑by‑step installation guidance, how to send and receive faxes, copy documents, connect an answering machine, and use special functions.
Additional sections describe routine maintenance, troubleshooting common problems, and reference tables for specifications such as resolution, power consumption, and paper handling.
| Modem speed | 9,600 bps |
|---|---|
| Memory size | 448 KB |
| Automatic document feeder capacity | 10 pages max |
| Power consumption (standby) | 2.5 W |
| Power consumption (maximum) | 110 W |
| Power requirements | 220‑240 V AC, 50/60 Hz |
| Operating temperature | 5 – 35 °C |
| Humidity range | 25 – 85 % RH |
| Dimensions (W × D × H) | 327 mm × 193 mm × 163 mm |
| Weight | Approx. 2.8 kg |
| Horizontal resolution | 8 pels/mm |
| Vertical resolution (standard) | 3.85 lines/mm |
The automatic document feeder can hold up to 10 pages.
The modem operates at 9,600 bps, with automatic fallback to lower speeds.
In standby mode the machine consumes 2.5 W.
