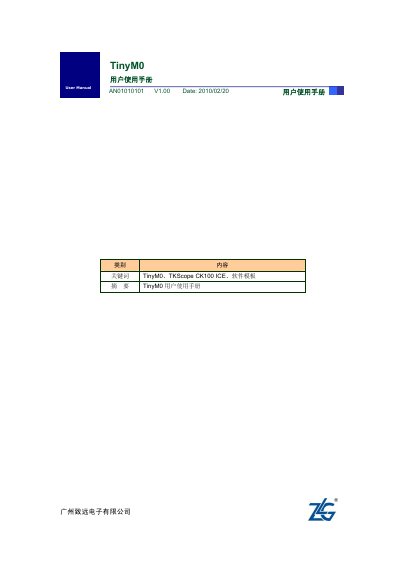

ZLG TinyM0 Development Board User Manual

About this manual

The TinyM0 is a development board based on a Cortex‑M0 core and an LPC1114 MCU, designed for engineers and students. It combines a core board with the TKScope CK100 ICE USB debugger, offering flexible use as a complete system or as separate modules.

The manual covers hardware overview, driver installation for the TKScope CK100 ICE, integration with IDEs such as Keil, IAR and TKStudio, and provides example projects and interrupt handling templates for rapid development. This manual is written in Chinese.

What's inside

• 1. TinyM0 开发工具概述
• 2. 仿真器使用说明
• 2.1 调试工具简介
• 2.2 TKScope CK100 ICE使用说明
• 2.2.1 安装TKScope CK100 ICE驱动
• 2.2.2 TKScope CK100 ICE驱动安装
• 2.2.3 TKScope CK100 ICE在KEIL中的设置
• 3. Keil模板使用说明
• 3.1 模板说明
• 3.2 前后台模板中的中断设置方法

Specifications

Frequently asked questions

How do I install the TKScope CK100 ICE driver?

Run the TKScopeSetup_ARM.EXE program and follow the on‑screen prompts to install the driver.

What IDEs can be used with the TinyM0 board?

The board’s USB debugger works with Keil, IAR and TKStudio development environments.

How should the driver be installed for Keil RealView MDK?

The driver must be installed into the Keil RealView MDK directory so that the paths match.
