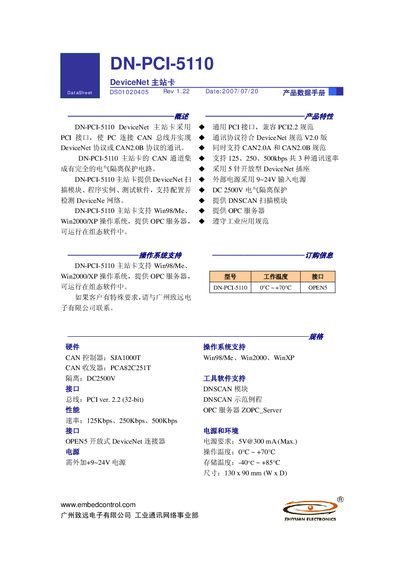

Technical data sheet for the DN-PCI-5110 DeviceNet master card with PCI interface, isolation and Windows driver support.
The DN-PCI-5110 is a PCI‑based high‑performance CAN bus adapter that enables a PC to communicate on DeviceNet or CAN 2.0B networks. It features full electrical isolation, a 5‑pin open‑type DeviceNet connector, and supports Windows 98/Me, 2000 and XP with an OPC server for SCADA integration.
The card includes an NXP SJA1000T CAN controller, NXP PCA82C251 transceiver, 8 KB DPRAM buffer, and supports 125 kbps, 250 kbps and 500 kbps DeviceNet speeds. It requires an external 9‑24 V DC supply and provides a regulated 5 V@300 mA for internal operation. This manual is written in Chinese.
| PCI Interface | PCI 32‑bit, PCI 2.2 compatible |
|---|---|
| CAN Controller | NXP SJA1000T |
| CAN Transceiver | NXP PCA82C251 |
| Electrical Isolation | DC 2500 V |
| External Power Supply | 9 V‑24 V DC |
| Internal Power Requirement | 5 V @ 300 mA (max) |
| Operating Temperature | 0 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Dimensions | 130 mm × 90 mm (W × D) |
| On‑board Data Buffer | 8 KB DPRAM |
| Supported Communication Rates | 125 kbps, 250 kbps, 500 kbps |
| Supported Operating Systems | Windows 98/Me, Windows 2000, Windows XP |
The card supports Windows 98/Me, Windows 2000 and Windows XP.
Power off the PC, open the case, insert the card into an empty PCI slot, secure it with screws, then power the PC back on so the BIOS assigns the interrupt and I/O address.
It supports DeviceNet communication speeds of 125 kbps, 250 kbps and 500 kbps.
