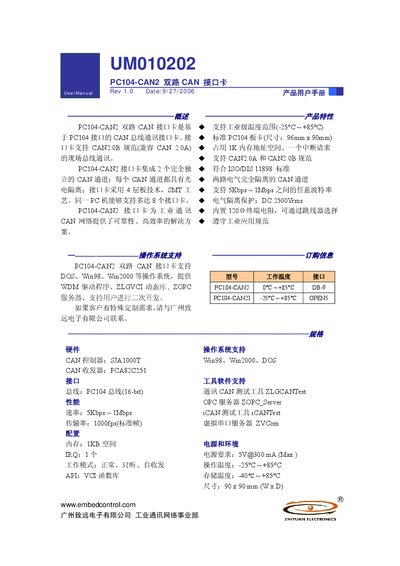

The ZhiYuan PC104-CAN2 dual CAN interface card manual provides specifications, installation, wiring, driver setup and maintenance details.
This manual describes the PC104-CAN2 dual CAN interface card, a PC104‑form factor board that offers two fully isolated CAN 2.0B channels for industrial communication. It includes hardware specifications, supported operating systems, and driver information.
The document covers hardware installation, connector wiring, address configuration, driver installation, API usage, and maintenance procedures, along with appendices for CAN protocol frames and standard baud rates. This manual is written in Chinese.
| Operating temperature | -25°C ~ +85°C |
|---|---|
| Power requirement | 5 V @ 300 mA (max) |
| Isolation voltage | DC 2500 Vrms (1 min) |
| Supported CAN speed | 5 Kbps ~ 1 Mbps |
| Memory address space | 1 KB |
| Interrupt requests | 1 |
| Dimensions | 90 mm × 90 mm |
| CAN controller | SJA1000T |
| CAN transceiver | PCA82C251 |
The card supports DOS, Windows 98 and Windows 2000.
It provides two fully independent CAN channels, each with optical isolation.
The isolation voltage is rated at DC 2500 Vrms for one minute.
Power consumption is less than 3 W.
