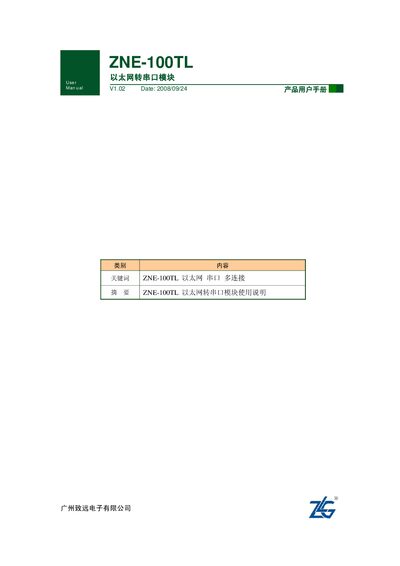

ZHIYUAN Electronics ZNE-100TL Ethernet to Serial Module User Manual

The ZHIYUAN Electronics ZNE-100TL Ethernet‑to‑Serial module manual provides setup, configuration, and operation instructions.

Brand: ZLG
Document type: User Manual
Language: Chinese
Pages: 80
File format: PDF
File size: 2.5 MB
Updated: 28 September, 2026
MD5 checksum: 1E6E221B347FE397A752C94ED7389F20
PDF: ZHIYUAN Electronics ZNE-100TL Ethernet to Serial Module User Manual PDF

About this manual

The ZNE-100TL is a multi‑function Ethernet‑to‑Serial conversion module with a 10/100M adaptive Ethernet interface and a serial port supporting up to 230.4 Kbps. It offers several operating modes such as TCP Server, TCP Client, UDP and Real COM driver, and supports up to four simultaneous connections.

The manual covers hardware description, wiring, IP configuration, software tools (ZNetCom), web‑based configuration, AT‑command usage, firmware upgrade, and troubleshooting. It also includes specifications, mechanical dimensions, and a product problem report form. This manual is written in Chinese.

What's inside

Function Overview
Hardware Description
Operating Modes
Module IP Address
Software Configuration (ZNetCom)
Super Terminal Configuration
Web Configuration
Firmware Upgrade
Appendix

Specifications

Ethernet Interface	10/100M
Maximum Serial Baud Rate	230.4 Kbps
Supply Voltage	5 V DC
Dimensions	44.5 × 31.7 mm
Operating Temperature (Industrial)	-25°C to 75°C
IO Ports	6
CPU	32-bit ARM
Maximum Connections	4

Frequently asked questions

Which operating modes does the ZNE-100TL support?

It supports TCP Server, TCP Client, UDP and Real COM driver modes.
