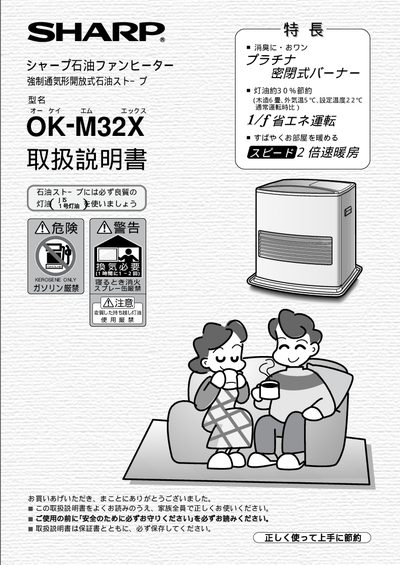

This oil heater is produced by Japanese brand Sharp, and its model is OK-M32X. Its features are deodorization and energy saving, and it requires 1 number kerosene when used.
The OK-M32X is a forced‑air kerosene heater designed for quick room heating while saving fuel. This manual explains safe handling, proper installation, and how to operate the various heating modes.
It covers safety warnings, the layout of controls, timer and energy‑saving functions, routine cleaning, storage procedures, troubleshooting, parts replacement, warranty information, and full technical specifications. This manual is written in Japanese.
| Power supply voltage / frequency | 100 V 50/60 Hz |
|---|---|
| Fuse rating | 125 V 63 A |
| Maximum power consumption (ignition) | 4000 W |
| Fuel type | Kerosene (灯油) 51号灯油 |
| Maximum fuel consumption | 0.333 L/h |
| Minimum fuel consumption | 0.067 L/h |
| Maximum heating output | 3.2 kW (2.75 kcal/h) |
| Minimum heating output | 0.64 kW (0.55 kcal/h) |
| Oil tank capacity | 50 L |
| Dimensions (H × W × D) | 467 mm × 409 mm × 280 mm |
The heater automatically extinguishes after three hours of operation, and the timer mode shuts off after one hour.
The air filter must be cleaned at least once a week to prevent clogging and abnormal combustion.
