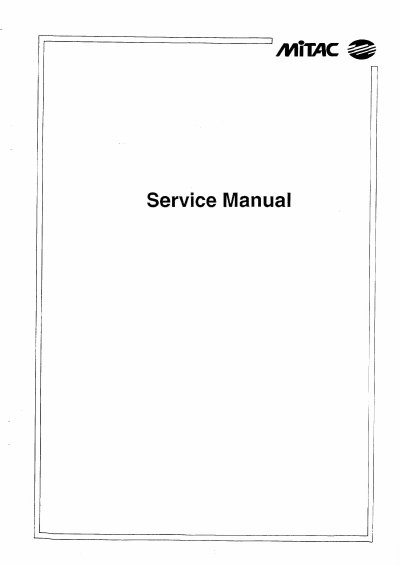

This manual introduces the maintenance process and precautions for MiTAC 2 eS products.
This document is a service manual for the MiTAC 2 eS monitor. It provides detailed instructions for qualified personnel regarding safety precautions, including X-ray and high-voltage warnings, as well as environmental requirements for operation and storage.
The manual includes technical specifications for the picture tube, display area, resolution, and power requirements. It also covers the theory of operation, input signal timing, controls, troubleshooting procedures, block diagrams, and a comprehensive parts list with service diagrams.
| Display Area | 250mm (H) x 185mm (V) |
|---|---|
| Resolution | VGA: 640 x 480 / 640 x 400 / 640 x 350 |
| Power Requirements | 100~240V AC, 50/60Hz |
| Power Consumption (ON mode) | 85W |
Only qualified personnel should service the unit due to the high-vacuum picture tube and high operating voltage of 24KV.
The monitor operates in temperatures between 0°C and 40°C.
