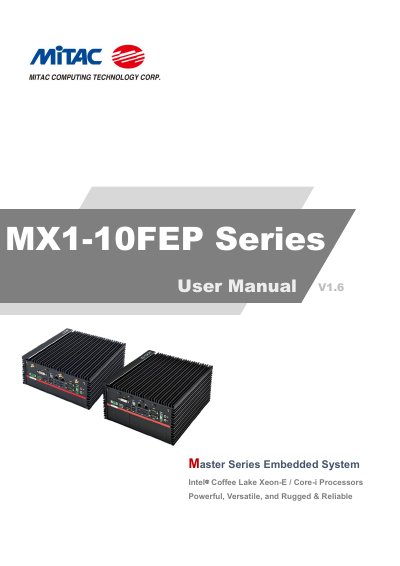

This manual introduces the features of Master Series embedded system, including Intel® Coffee Lake Xeon-E / Core-i processors, powerful, versatile, and rugged & reliable.
The MiTAC MX1-10FEP Series is a fanless embedded system designed for high performance and reliability, supporting Intel 8th and 9th Generation Xeon-E and Core-i processors. It features a wide temperature operating range and expandable module design for various applications.
This user manual provides comprehensive guidance on system setup, including hardware installation for SATA drives, CPUs, and fans. It also details BIOS configuration options, DIP switch settings, and pin definitions for internal and external connectors, along with information on optional expansion modules. This manual is written in Chinese.
| Processors | 8th & 9th Generation Intel Xeon-E, Core i7 / i5 / i3 |
|---|---|
| Memory | 2x260Pin DDR4 SO-DIMM 2666Mhz up to 32GB |
| Display Interfaces | 1xHDMI, 1xDisplayPort, 1xDVI-I |
| Network | 2xGbE LANs |
| USB Ports | 6xUSB3.0, 2xUSB2.0 |
| Power Input | 9~48V DC-in |
| Operating Temperature | -40 to 70 Celsius degrees |
It supports 8th & 9th Generation Intel Xeon-E and Core i7 / i5 / i3 processors.
The system operates between -40 and 70 Celsius degrees.
No, it is a fanless chassis, though optional internal and external fan kits are available.
