This document introduces the features of MITAC Desktop Board PD11TI, including form factor, processor, memory, graphics, audio, etc.

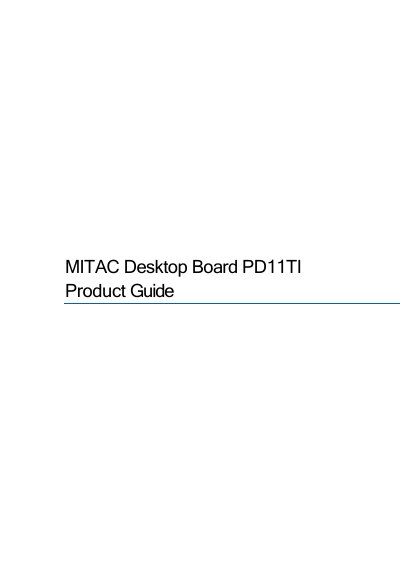

The document provides a product guide for the MITAC Desktop Board PD11TI. It details the board's features, including its fanless dual-core Atom processor, NM10 Express chipset, and support for up to 4 GB of DDR3 memory. The guide also lists various expansion capabilities such as PCIe slots and USB ports.
| Form Factor | Low-profile Mini-ITX (20 mm x 170.18 mm x 170.18 mm) |
|---|---|
| Processor | Dual-core Atom N2800 with integrated graphics and memory controller |
| Chipset | NM10 Express Chipset |
| Memory Support | Up to 4 GB of system memory on a single SO-DIMM (or two 2 GB SO-DIMMs) |
| Memory Speed | DDR3 800 MHz and DDR3 1066 MHz |
| Graphics Output | 7 Digital displays (HDMI) and 7 Analog displays (VGA) |
| LAN | Gigabit (10/100/1000 Mb/s) Ethernet LAN controller |
| USB Ports | Eight exposed USB 2.0 ports |
No, the processor is soldered to the board and is not customer upgradeable.
The board uses a passively-cooled, fanless design with a dual-core Atom processor.
