MITAC Desktop Board PD12TI is a Mini-ITX motherboard that features a passively cooled dual-core Intel Atom processor with integrated graphics and memory controller, supports DDR3 1066/1333/1600 MHz SO-DIMMs, supports up to 4 GB of system memory.

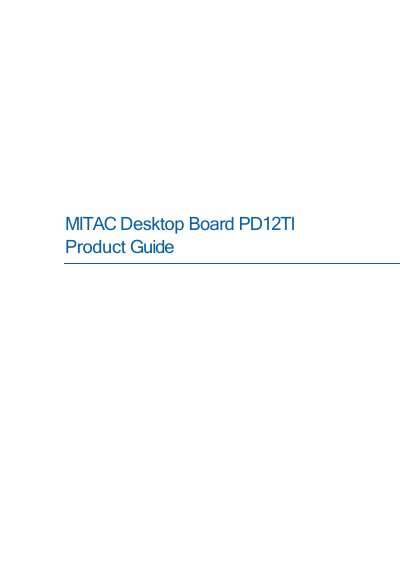

The document is a product guide for the MITAC PD12TI Desktop Board, a passively-cooled Mini-ITX motherboard featuring an Intel Atom processor. It details system specifications including memory support, chipset capabilities, and peripheral interfaces such as USB, SATA, and audio.
The manual also covers hardware components with a labeled diagram, explains how to update the BIOS using F7 function key or recovery methods, and lists various status indicators like beep codes and LED blink patterns for troubleshooting errors.
| Form Factor | Mini-ITX (170 mm x 170 mm) |
|---|---|
| Processor | Passively-cooled, soldered-down dual-core Intel Atom processor |
| Main Memory Support | Up to 4 GB DDR3 SO-DIMM |
| Chipset | Intel NM10 Express Chipset |
| Integrated Graphics | Intel GMA 3600 |
| LAN Controller | Intel 82574L Gigabit Ethernet |
| USB Ports | Seven USB 2.0 ports |
A pattern of three beeps followed by a 2.5-second pause indicates a memory error.
No, the processor is soldered to the Desktop Board and is not customer upgradeable.
