This manual contains information about the JBL QUANTUM600 gaming headset, including the headset's components, usage steps, specifications, etc.

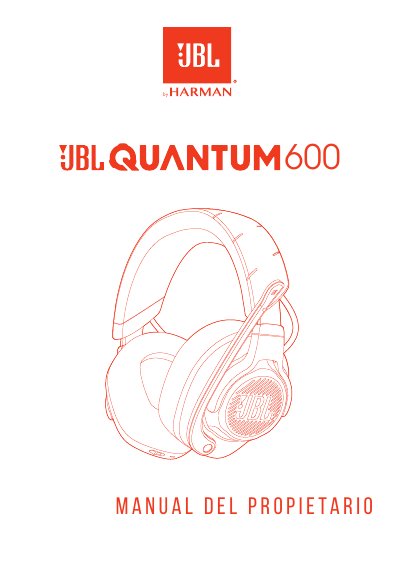

This is the owner's manual for the JBL Quantum600 gaming headset. It details the contents of the package, including the headset, USB charging cable, 3.5mm audio cable, and wireless USB backpack. The document provides step-by-step instructions on how to charge the device (2 hours via USB-A to USB-C), wear it correctly, and power it on. This manual is written in Spanish.
| Driver Size | 50 mm dynamic units |
|---|---|
| Frequency Response | 20 Hz – 20 kHz |
| Microphone Frequency Response | 100 Hz - 10 kHz |
| Max Input Power | 30 mW |
| Sensitivity | 100 dB NPS at 1 kHz/1 mW |
| Max SPL | 97 dB |
| Microphone Sensitivity | -40 dBV at 1 kHz/Pa |
| Wireless Transmitter Power | <4 dBm |
| Battery Type | Lithium-ion (3.7 V, 1000 mAh) |
| Charging Time | 2 hours |
| Music Playback Time (RGB off) | 14 hours |
| Microphone Pickup Pattern | Unidirectional |
| Weight | 346 g |
It takes approximately 2 hours to fully charge the headset using the supplied USB A to USB C cable.
Yes, you can charge the headset using a USB C to USB C cable, though it is not supplied with the package.
You can silence the microphone by folding the boom up or pressing the button on the headset.
The headset will automatically turn off after 10 minutes of inactivity.
