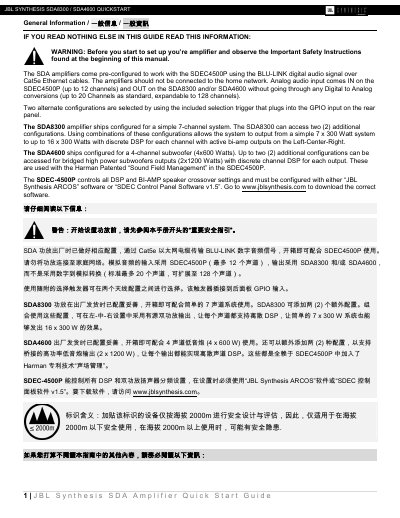

Quick start guide for JBL Synthesis SDA8300 and SDA4600 amplifiers, covering safety, setup, configuration, and speaker connections.
This guide provides essential safety instructions and general information for the JBL Synthesis SDA8300 and SDA4600 amplifiers. The amplifiers are pre‑configured to work with the SDEC4500P via the BLU‑LINK digital audio link over Cat5e Ethernet and are not intended for connection to a home network.
The document walks through step‑by‑step setup, including connecting the pre‑amp or surround processor, configuring the amplifiers for 7‑channel (SDA8300) or 4‑channel subwoofer (SDA4600) operation, and wiring speakers with Category 2 speaker cable. It also details configuration options using jumper plugs and GPIO, cooling requirements for rack‑mount installations, and wiring recommendations for low‑impedance loads. This manual is written in Chinese.
| SDA8300 default channel configuration | 7‑channel (expandable to 16 × 300 W) |
|---|---|
| Maximum daisy‑chain length | Up to 60 amplifiers, supporting up to 128 discrete channels |
Up to 60 amplifiers can be connected in a daisy‑chain, providing up to 128 discrete channels.
No. The unit has no user‑serviceable parts; servicing must be performed by qualified technicians.
