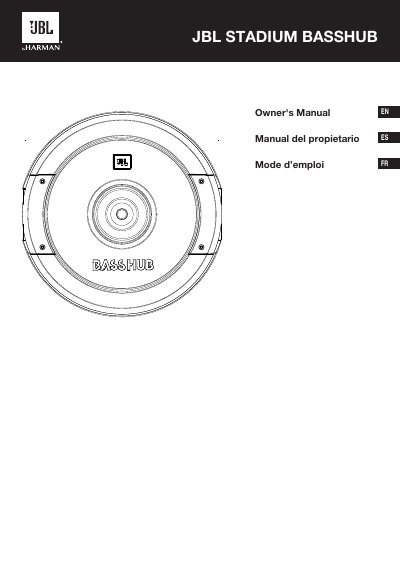

JBL Stadium BassHub Owner's Manual

The manual describes the usage of JBL STADIUM BASSHUB. It needs to be installed inside the spare tire of a car to enhance the bass effect.

Brand: JBL
Category: Car
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 2 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 2CAEBDD7AB9D62220D520C8432FB8296
PDF: JBL Stadium BassHub Owner's Manual PDF

About this manual

This manual provides installation guidelines for the JBL Stadium BassHub, which mounts inside the rim of a vehicle's spare tire. It details the steps to remove the original mounting post, place the unit in the rim, and secure it with the provided hardware. The guide also covers using an adapter if necessary and warns against overtightening.

What's inside

Mounting the Stadium BassHub
Connecting the Wiring Harness
Wiring to Amplifier (Parallel)
Wiring to Amplifier (Series)
Specifications

Specifications

Power handling	600W RMS, 1200W peak
Frequency Response	20Hz – 150Hz
Sensitivity	90dB (@2.83V/ 1m)
Voice Coil diameter	2.5in. (64mm)
Impedance	Dual 4 ohms

Frequently asked questions

How do I wire the Stadium BassHub in parallel?

Connect SUB1+ and SUB2+ to the amplifier's + output, and connect SUB1- and SUB2- to the amplifier's – output.

How do I wire the Stadium BassHub in series?

Connect SUB1+ to the amplifier's + output, connect SUB2- to the amplifier's – output, and splice SUB1- with SUB2+.

What are the dimensions of the Stadium BassHub?

The dimensions are 14-3/16" x 6-1/2" (D360mm x H164.5mm).
