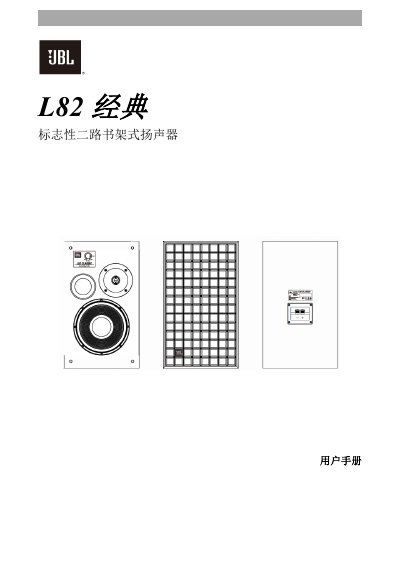

The JBL L82 Classic speaker user manual provides setup, placement, connection, control, maintenance, and specifications.
The manual introduces the JBL L82 Classic two‑way bookshelf speaker, highlighting its 8‑inch paper‑cone bass driver and 1‑inch titanium dome tweeter, along with the heritage of JBL’s classic designs. It lists the package contents and describes the speaker’s physical characteristics and finish.
Detailed sections cover proper placement and positioning, wiring polarity and connector types, front‑panel controls for bass and treble balance, speaker care instructions, and full technical specifications. The guide also includes safety warnings and recommended amplifier power ranges.
| System type | Two‑way bookshelf speaker |
|---|---|
| Bass driver | 8 in (200 mm) paper‑cone (JW200PW‑6) |
| Tweeter | 1 in (25 mm) titanium dome (JT025TI1‑4) |
| Recommended amplifier power | 25‑150 W RMS |
| Crossover frequency | 1.7 kHz |
| Frequency response | 44 Hz – 40 kHz (-6 dB) |
| Weight | 29 lb (13.2 kg) each |
The “+” terminal is red and the “‑” terminal is black; connect the amplifier’s positive lead to the red terminal and the negative lead to the black terminal.
It uses an 8‑inch (200 mm) pure‑paper cone bass driver, part number JW200PW‑6.
