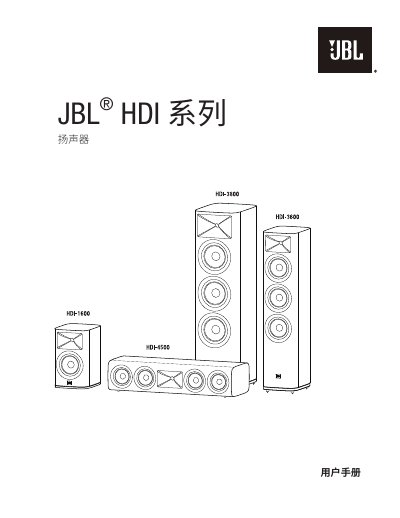

The JBL HDI series speaker user manual provides placement tips, wiring instructions, specifications, and care guidelines for the HDI-1600, HDI-3600…
This manual explains how to set up JBL HDI series speakers for optimal performance. It covers recommended placement distances, angles, and height relationships for bookshelf, floor‑standing, and center channel models, as well as guidelines for 5.1 and 7.1 surround configurations.
The guide also details connection methods, including single‑wire and bi‑amp wiring, polarity markings, and connector types. Additional sections describe how to remove the grille, clean the speakers, and provide the full technical specifications for each model. This manual is written in Chinese.
| Impedance | 4 Ohm |
|---|---|
| Recommended Amplifier Power (HDI-1600) | 15 W‑200 W |
| Frequency Response (HDI-1600) | 40 Hz – 30 kHz (-6 dB) |
| Sensitivity (HDI-1600) | 85 dB @ 1 m (2.83 V) |
| Dimensions (HDI-1600, with grille) | 230 × 294.7 × 370 mm |
| Weight (HDI-1600, with grille) | 9.96 kg |
Simply pull the grille outward to detach it from the speaker.
