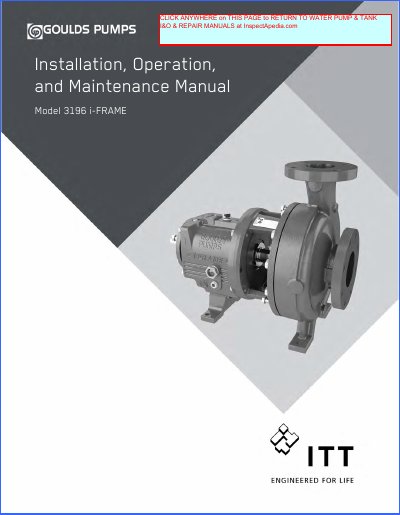

ITT Model 3196 i-FRAME Installation Operation and Maintenance Manual

About this manual

The document serves as a comprehensive guide for the ITT Model 3196 i-FRAME pump, detailing procedures for installation including foundation requirements, baseplate mounting, and piping checklists. It also provides instructions for commissioning, startup, and daily operation precautions.

A significant portion of the manual is dedicated to maintenance and repair, covering bearing lubrication, mechanical seal options (dynamic, packed stuffing box), and detailed disassembly and reassembly steps for various pump configurations such as STi, MTi, LTi, XLT-i, and i17.

What's inside

• Introduction and Safety
• Transportation and Storage
• Product Description
• Installation Procedures
• Commissioning and Startup
• Pump Operation Precautions
• Maintenance Schedule
• Disassembly Instructions
• Reassembly Guidelines
• Troubleshooting

Specifications

Frequently asked questions

Can the pump be operated with suction or discharge valves closed?

No, never operate the pump with suction and/or discharge valves closed due to risks of heat buildup, pressure buildup, and potential explosion.

What is the primary purpose of this manual?

This manual provides necessary information for the installation, operation, and maintenance of the Model 3196 i-FRAME pump.

What safety precaution must be taken regarding suction and discharge valves?

You must never operate the pump with the suction and/or discharge valves closed.
