This document is the instruction manual for FrSky ARCHER GR8 Receiver

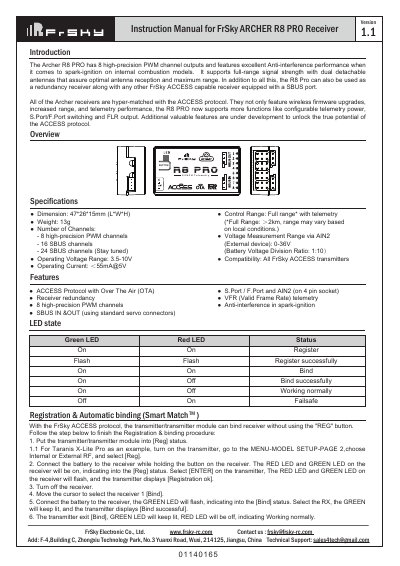

This document is the instruction manual for the FrSky ARCHER R8 PRO receiver. It details the device's specifications, including 8 high-precision PWM channels and support for the ACCESS protocol. The guide explains how to perform registration and automatic binding with compatible transmitters.
| Number of Channels | 8 high-precision PWM channels |
|---|---|
| SBUS Channels | 16 or 24 channels |
| Operating Voltage Range | 3.5-10V |
| Operating Current | <55mA@5V |
| Weight | 13g |
| Control Range | Full range with telemetry |
Connect the battery to the receiver while holding the button on the receiver to enter [Reg] status, then select [Bind] on the transmitter.
FS mode is the factory default, while HS mode is for digital servos; using HS mode with other servos may cause them to burn out.
Go to the SD CARD menu on the transmitter, select the FW file, press enter, and select [Flash receiver OTA] while the receiver is powered on.
