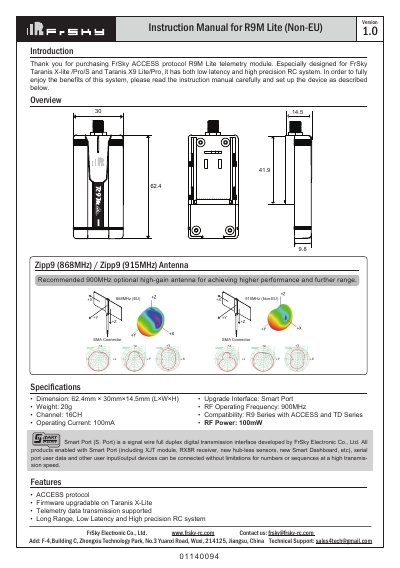

FrSky R9M Lite Telemetry Module Instruction Manual

Instruction manual for FrSky ACCESS protocol R9M Lite telemetry module

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 2.9 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: E61DCE45F35C3195C6A2D2BFC04B8FD3
PDF: FrSky R9M Lite Telemetry Module Instruction Manual PDF

About this manual

The FrSky R9M Lite is a 900MHz telemetry module designed for use with FrSky Taranis X-lite/Pro/S and XQ Lite/Pro transmitters. It features low latency, high precision, and supports the ACCESS protocol for firmware upgrades and data transmission. The device includes an upgrade interface (Smart Port) and operates at 100mW RF power.

What's inside

Introduction
Overview
Specifications
Features
LED State
Registration & Automatic binding
Range Check
How to Set Failsafe mode

Specifications

Dimension	62.4mm * 30mm * 14.5mm (LxWxH)
Weight	20g
RF Operating Frequency	900MHz
Channel	16CH
Operating Current	100mA
RF Power	100mW

Frequently asked questions

Which transmitters is the R9M Lite compatible with?

It is especially designed for FrSky Taranis X-lite /Pro/S and Taranis XQ Lite/Pro.

How do I check the range before flying?

Place the model at least 60cm above non-metal contaminated ground and go to MODEL SETUP—External RF—Mode R9M—Range.
