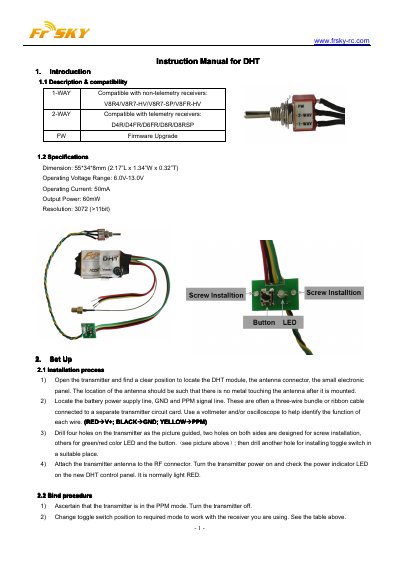

FrSky DHT Module User Manual

This manual introduces the installation and usage of the DHT module.

Brand: FrSky
Document type: User Manual
Language: English
Pages: 3
File format: PDF
File size: 310 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: ABF048A61D6A16C46666504716B8B5C0
PDF: FrSky DHT Module User Manual PDF

About this manual

The FrSky DHT is a 1-way or 2-way compatible module designed to work with specific non-telemetry and telemetry receivers. It features screw installation, LED indicators, and a button for configuration. The device operates on a voltage range of 6.0V-13.0V.

What's inside

Introduction
Description & compatibility
Specifications
Installation process
Bind procedure
Range check
Signal loss indicator and failsafe setting

Specifications

Dimension	55348mm (2.17"L x 1.34'W x 0.32'T)
Operating Voltage Range	6.0V-13.0V
Operating Current	50mA
Resolution	3072 (>11bit)

Frequently asked questions

Which receivers is the DHT module compatible with?

It is 1-way compatible with V8R4/V8R7-HV/V8R7-SP/V8FR-HV and 2-way compatible with D4R/D4FR/D6FR/D8R/D8RSP.

How do I identify the wires for installation?

Use a voltmeter to identify RED as V+, BLACK as GND, and YELLOW as PPM.
