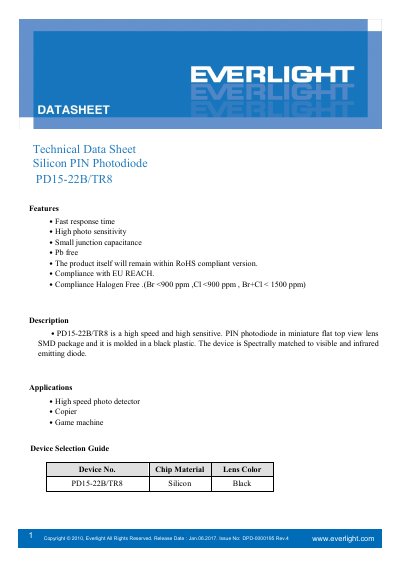

This document describes the features of Everlight's PD15-22B/TR8 silicon PIN photodiode, including fast response time, high photo sensitivity, and small junction capacitance.
The Everlight PD15-22B/TR8 is a high-speed and high-sensitive Silicon PIN photodiode designed in a miniature flat top view lens SMD package. It is spectrally matched to visible and infrared emitting diodes, making it suitable for applications requiring fast response times and small junction capacitance. The device is molded in black plastic and complies with RoHS, EU REACH, and Halogen Free standards.
| Reverse Voltage | 32 V |
|---|---|
| Operating Temperature | -40 ~ +85 ℃ |
| Soldering Temperature | 260 ℃ |
| Power Dissipation | 150 mW |
| Spectral Bandwidth | 730 --- 1100 nm |
| Peak Sensitivity Wavelength | 940 nm |
| Open-Circuit Voltage | 0.41 V |
| Rise Time | 10 nS |
| View Angle | 130 deg |
It is used as a high speed photo detector, in copiers, and in game machines.
The soldering temperature should not exceed 260 ℃.
It should be used within 168 hours (7 days) after opening the package.
